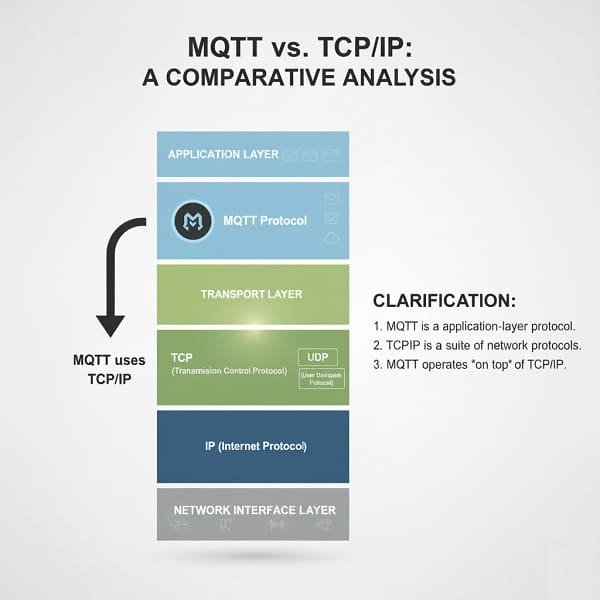

This is a classic and important topic. However, it’s crucial to first clarify the relationship: MQTT and TCP/IP are not mutually exclusive alternatives; they operate at different layers of the network stack.

TCP/IP is a protocol suite and the foundation of internet communication. It defines how data is packetized, addressed, transmitted, and routed to ensure it reliably moves from one device to another. The Transmission Control Protocol (TCP) within this suite provides a reliable, connection-oriented stream.

MQTT is an application layer protocol. It runs on top of the reliable connection provided by TCP. It is specifically designed for IoT and defines message formats, communication rules (like publish/subscribe), and features (like Last Will and Testament).

A simple analogy:

TCP/IP is like the road system and traffic rules: It ensures that cars (data packets) can travel reliably from Point A to Point B without getting lost.

MQTT is like a courier company’s service: It defines how to fill out a shipping label (the Topic), how to package the goods (the Payload), supports “subscribing” to deliveries for a certain address (Pub/Sub), and what to do if the sender disappears (Last Will).

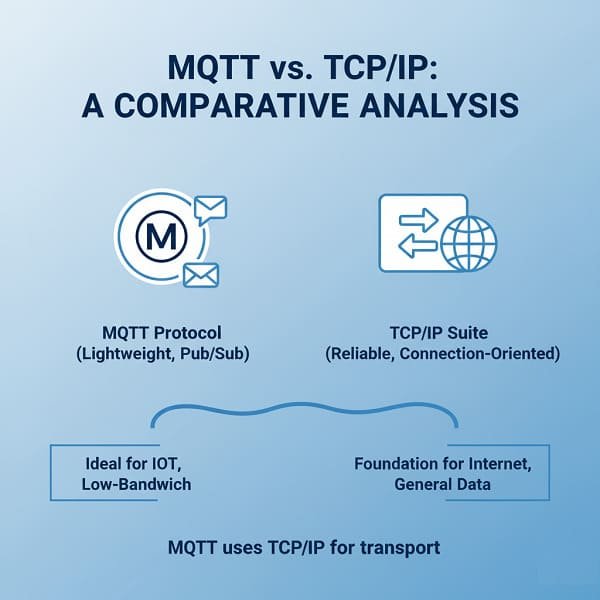

Comparison Table

For a clear comparison, let’s analyze the characteristics of the TCP protocol and the MQTT protocol across various dimensions.

Detailed Explanation

1. Communication Model: A Fundamental Difference

TCP (Point-to-Point):

Communication peers must establish a direct connection, knowing each other’s IP address and port.

The server must maintain a separate connection for each client.

Drawback: In an IoT scenario, if data from a sensor (client) needs to be consumed by multiple backend services, the TCP approach requires the sensor to establish a connection and send data to each service, or requires a middle server for distribution, complicating the architecture.

MQTT (Publish/Subscribe):

Introduces a Broker (server). All clients (publishers and subscribers) connect only to the broker.

A Publisher sends a message to a Topic.

A Subscriber tells the broker which Topics it is interested in.

The broker is responsible for routing messages from publishers to all relevant subscribers.

Advantage: Complete Decoupling. Publishers don’t know or care how many subscribers there are; subscribers don’t know who the publishers are. This greatly enhances system scalability and flexibility.

2. Features Optimized for IoT

MQTT builds upon TCP’s reliability, adding numerous features designed for IoT constraints:

Minimal Packet Overhead: The protocol is extremely lean, with a minimum header size of only 2 bytes. This is ideal for low-bandwidth, high-latency networks.

Three Quality of Service (QoS) Levels:

QoS 0: At most once (Fire and forget, no guarantee).

QoS 1: At least once (Guaranteed delivery, but may have duplicates).

QoS 2: Exactly once (Guaranteed, no duplicates. Most reliable, highest overhead).

This allows developers to trade off between reliability and performance based on the use case.

Last Will and Testament (LWT): A client can set a “Will” message. If the client disconnects ungracefully, the broker automatically publishes this message, alerting other clients that the device has gone offline.

Retained Messages: The broker saves the last message on a topic. Any new subscriber to that topic immediately receives this message, without waiting for the next publication.

Persistent Sessions: A client can request the broker to retain its subscriptions and any missed messages (with QoS > 0) during a disconnect, allowing state to be restored upon reconnection.

3. Complexity and Control

Using Raw TCP/IP:

Pros: You have complete control. You can define any data format and communication logic.

Cons: You must handle all complexities yourself: connection keep-alive, reconnection logic, message serialization/deserialization, message routing, subscription management, and QoS guarantees. This requires significant development effort and is error-prone.

Using MQTT:

Pros: It’s a high-level, “out-of-the-box” protocol. The complexities mentioned above are handled by the protocol specification and MQTT brokers (e.g., EMQX, Mosquitto). You simply use a client library API to implement business logic quickly.

Cons: You must adhere to the MQTT specification, losing full control over the low-level packet structure.

How to Choose?

Choose Raw TCP/IP when:

You need ultimate performance and the lowest possible latency, the network is very stable, and you can implement reliability yourself.

You have highly unique, non-standard communication requirements that MQTT or other application protocols cannot fulfill.

The communication model is very simple, strictly one-to-one, with no complex message distribution needs.

You are on an extremely resource-constrained embedded device where even a tiny MQTT client library cannot fit (this is becoming increasingly rare).

Choose MQTT when (Highly recommended for):

Virtually all Internet of Things (IoT) applications: Many devices, unstable networks, constrained resources (power, computing, bandwidth).

Mobile push notifications: Where mobile apps need to receive real-time messages from servers.

Scenarios requiring one-to-many or many-to-many message distribution.

When you want to rapidly build a decoupled, scalable distributed system.

When developers need to focus on business logic, not low-level communication details.

Summary

In short, in today’s world of IoT and mobile internet, building a communication system directly on raw TCP/IP is like reinventing the wheel; using MQTT is like choosing a mature, professional “racing tire” that gets you to your destination faster and more reliably. Now all of our devices have supported TCP/IP and MQTT protocols, you can use any of them.
