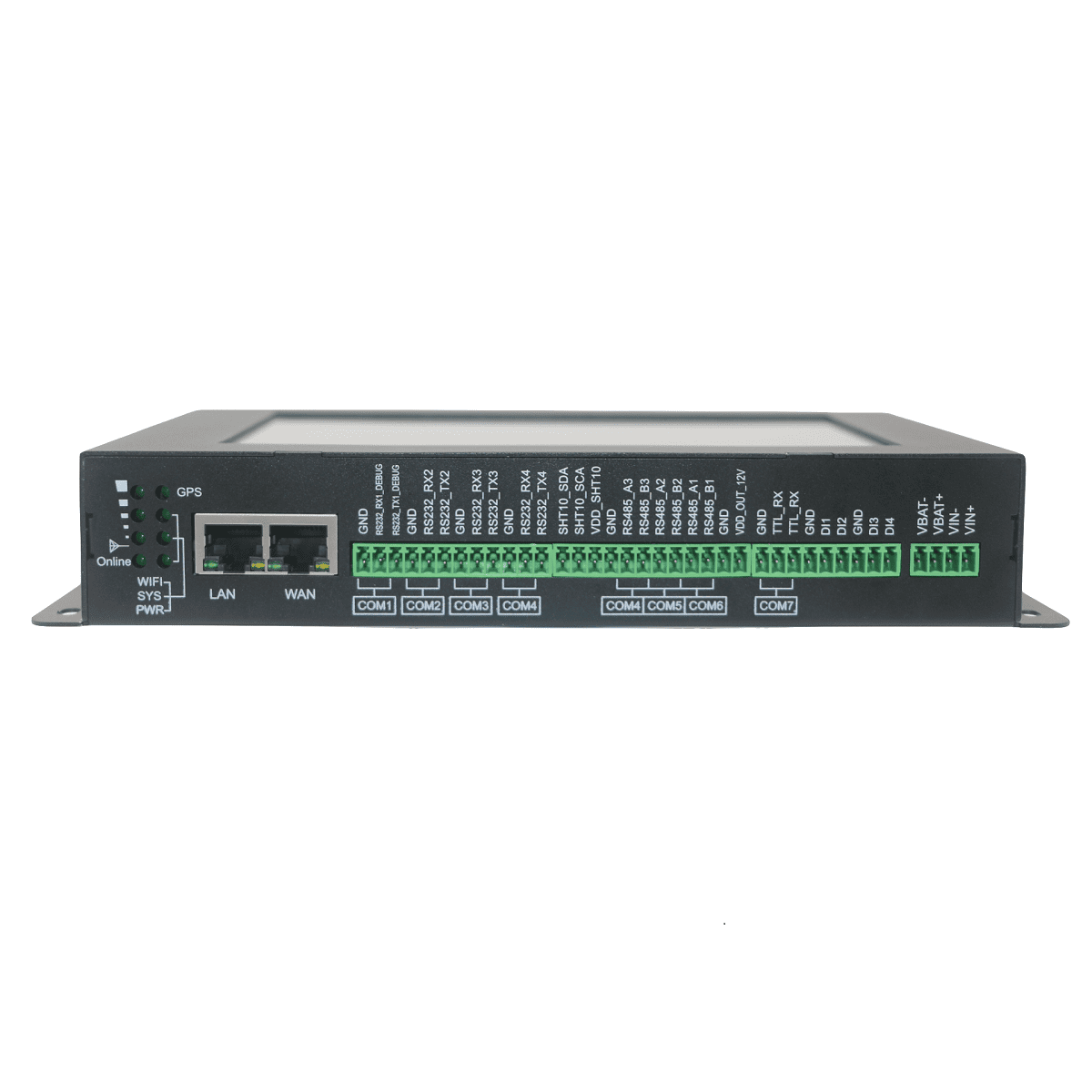

Meet G6600 4G EDGE Computing Gateway
- Super edge computing capability
The IoT Gateway device can realize edge node data optimization and real-time response. It will analyze, filter and judge the collected data, and then transmit valid data to the server to effectively share the load of cloud computing resources.
- Support user secondary development
It adopts ARM architecture high-end processor and standard Linux system, integrates Python development environment and C++, provides standard API interface and development guidance. Users can easily call various interfaces and resources of the system.
- Rich interface
It is integrated 1-WAN, 1-LAN, USB, 4- RS232, 3-RS485, 1-I2C, 1-TTL, 8-ADC, 4-DI, 4-DO, 5-Power Output, TF card slot, GPS interface.
- Multiple protocols
Support Alibaba Cloud, Huawei Cloud, Microsoft, Amazon, Schneider, Siemens and other platforms to access. Compatible with mainstream industrial protocols of various devices, such as MQTT, Modbus TCP/RTU, Modbus to Json, Profibus-DP, Profinet, OPC UA, etc.
- Large memory
Support data storage and export, no data loss after power failure, automatic transmission of stored data after the network returns to normal.
|
MOBILE |
|
|
Mobile module |
4G (LTE) – Cat 4 up to 150 Mbps downlink, 50Mbps uplink |
|
Status |
Signal strength (RSSI), Attached network, IMSI, ICCID |
|
APN |
Auto APN, Customized APN |
|
WIRELESS |
|
|
Wireless mode |
IEEE 802.11b/g/n, Access Point (AP) |
|
WiFi security |
WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation |
|
SSID |
SSID stealth mode and access control based on MAC address |
|
WiFi users |
Up to 30 simultaneous connections |
|
PHYSICAL INTERFACE |
|
|
WAN |
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
LAN |
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
Serial |
4-RS232(1 for debug), 3-RS485. 3.5 mm female socket with lock |
|
Screen |
7-inch HD touch screen |
|
SD Card Slot |
1x Micro SD interface, Up to 32G |
|
I/O |
3.5 mm female socket with lock 4 x DI (0-30V Input), Status “0”: 0-3V, status “1”: 5-30V 4 x Relay Output (Up to 5A and 30VDC/250VAC switch) 8 x 16-bit Analog Input, supports 4-20mA current signal input, and 0-5V voltage signal input 1 x I2C, for temperature, humidity sensors 1 x TTL 5 x Power Output (3-channel 12V output, 1- channel 9V output, rated current 1A, 1-channel 5V output, rated current 1A) |
|
GPS (Option) |
Built in external GPS module |
|
SIM |
1 Standard SIM card slot,1.8 V/3 V, external SIM holder |
|
Antenna |
2 x SMA for LTE, 1 x SMA for WiFi antenna connectors |
|
LED |
3 x Signal strength LEDs, 1 x Alarm LED, 1 x Run status LED,1 x Power LED,1 x VPN status LED, 1 x WIFI LED |
|
Reset |
Reboot/Factory reset button |
|
NETWORK |
|
|
Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng, OSPF6) |
|
Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, TLS, ARP, VRRP, PPP, PPPoE, UPnP, SSH, DHCP, Telnet client, SNMP |
|
Serial Port |
MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP) |
|
Connection monitoring |
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall |
SPI Firewall, DoS attack, VPN traversal, Access Control, Port Mapping, DMZ Mapping, Access Control List(ACL), IP-MAC binding and Clone function |
|
DHCP |
Static and dynamic IP allocation, DHCP Relay |
|
QoS |
Traffic priority queuing by source/destination, service, protocol or port |
|
DDNS |
Supported >25 service providers, others can be configured manually |
|
Network backup |
VRRP, Mobile and Wired, each of which can be used as backup, using automatic failover |
|
SECURITY |
|
|
Attack prevention |
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention) |
|
VLAN |
Port and tag based VLAN separation |
|
WEB filter |
Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
|
Access control |
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN |
|
|
OpenVPN |
Multiple clients can be running simultaneously, 10 encryption methods |
|
OpenVPN Encryption |
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPsec |
IKEv1, IKEv2, supports up to 10 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
|
GRE |
GRE tunnel |
|
PPTP, L2TP |
Client/Server services can run simultaneously |
|
Serial transmission |
|
|
TCP/UDP server |
|
|
Parameters |
Port, Baud rate, Parity, Data bits, Stop bits, Flow control |
|
TCP/UDP client |
|
|
Parameters |
Port, Baud rate, Parity, Data bits, Stop bits, Flow control, Heartbeat |
|
Data center |
Supported 4 server run simultaneously |
|
MONITORING & MANAGEMENT |
|
|
WEB UI |
HTTP, status, configuration, FW update,troubleshoot, event log, system log, kernel log |
|
FOTA |
Firmware update from sever, automatic notification |
|
SNMP |
SNMP (v1, v2, v3) |
|
IoT PLATFORMS |
|
|
Cloud of Things |
Allows monitoring Network info, Availability |
|
Configure |
Configure parameters, Update firmware |
|
SYSTEM CHARACTERISTICS |
|
|
CPU |
32-bit ARM Cortex A7 |
|
RAM |
256 MB, DDR3 |
|
FLASH storage |
1GB, SPI Flash |
|
FIRMWARE / CONFIGURATION |
|
|
WEB UI |
Update FW from file, check FW on cloud, configuration backup and restore |
|
FOTA |
Update FW/configuration from cloud platform |
|
RMS |
Update FW/configuration for multiple devices |
|
Keep settings |
Update FW without losing current configuration |
|
POWER |
|
|
Connector |
4-pin with 3.5 mm terminal block |
|
Input voltage range |
5 – 35 VDC, reverse polarity protection, surge protection |
|
Power consumption |
< 6 W Max |
|
PHYSICAL SPECIFICATION |
|
|
Casing material |
Metal housing, DIN rail mounting option |
|
Dimensions (W x H x D) |
228 x 122x 38 mm |
|
Weight |
890 g |
|
OPERATING ENVIRONMENT |
|
|
Operating temperature |
-40 °C to 75 °C |
|
Operating humidity |
10% to 90% non-condensing |
|
Ingress Protection Rating |
IP30 |
|
REGULATORY & TYPE APPROVALS |
|
|
Regulatory |
CE, FCC, CCC |
|
EMI IMMUNITY |
|
|
Standards |
Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-52 V1.1.0 |
|
ESD |
EN61000-4-2:2009 |
|
RS |
EN 61000-4-3:2006 + A1:2008 + A2:2010 |
|
EFT |
EN 61000-4-4:2012 |
|
Surge immunity (AC Power Line) |
EN 61000-4-5:2006 |
|
Surge immunity (Ethernet ports) |
EN 61000-4-5:2014, clause 7.1 of ITU-T K21 |
|
CS |
EN 61000-4-6:2009 |
|
DIP |
EN 61000-4-11:2004 |
|
RF |
|
|
Standards |
EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1 |
