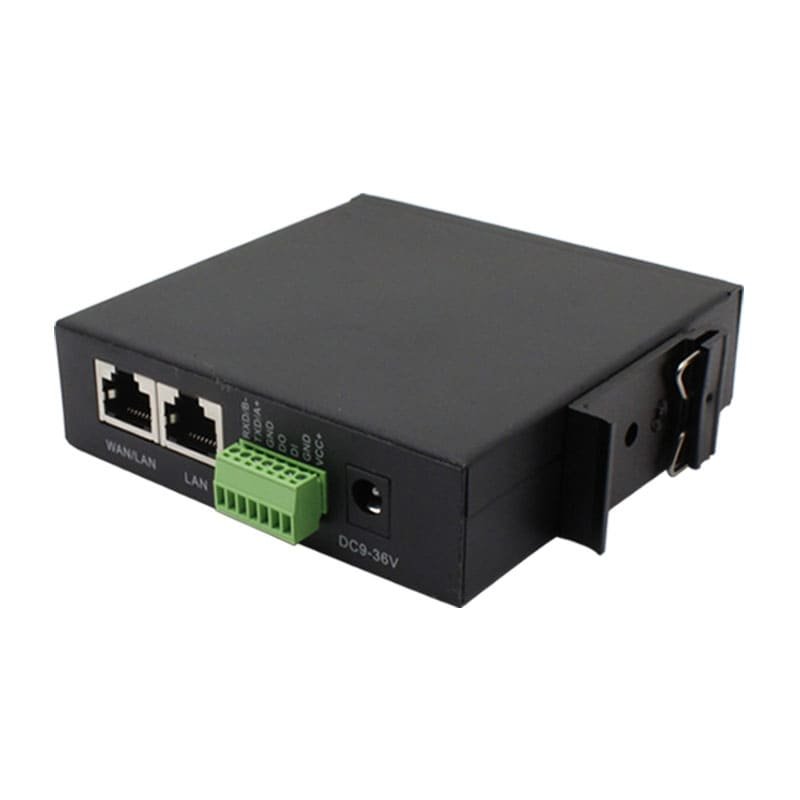

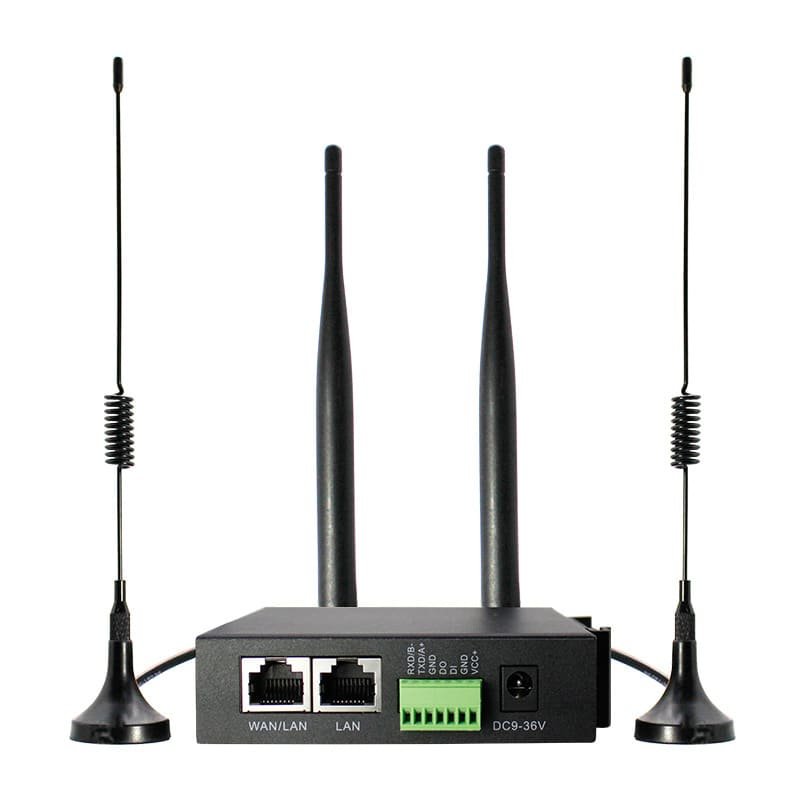

Meet R2100 4G Industrial Router
R2100 series 4G LTE router is a rugged industrial-grade IoT device based on OpenWRT system.
Support AUTO and customized APN settings to work with different ISP SIM card.
Integrated with Qualcomm 4G modem and compliant with CE, RoHS, and FCC.
IEEE 802.11n WiFi4 standard, allows 30 simultaneous WiFi connections.
Dedicated hardware and software watchdog are designed to support system running reliable.
Rich VPN protocols like WireGuard, OpenVPN, GRE, IPsec, to offer connectivity, security and remote access to both local and remote clients.
Free service to monitor, configure and control all terminals via Cloud.
2 Ethernet and 1 RS232/RS485 interface, desk or din-rail mounting, works well under -40~75℃.
Enable applications as diverse as smart trafic, self-service vending machine, kiosk, smart metering, remote control.
MOBILE | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile module | 4G (LTE) – Cat 4 up to 150 Mbps downlink, 50Mbps uplink 4G (LTE) – Cat 1 up to 10 Mbps downlink, 5Mbps uplink | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Status | Signal strength (RSSI), Attached network, IMSI, ICCID | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
APN | Auto APN, Customized APN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WIRELESS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless mode | IEEE 802.11n WiFi4, Access Point (AP) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WiFi security | WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SSID | SSID stealth mode and access control based on MAC address | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WiFi users | Up to 30 simultaneous connections | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface
Standard Package Includes: * 1x R2100 4G Industrial Router * 1x 12W PSU * 1x Ethernet cable, 1m * 2x 4G magnet antenna,1.5m cable * 2x WiFi antenna Note: All accessories can be customized. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Most Popular Questions
After you completed the WireGuard VPN server setting, you can login the router and configure the settings.
In VPN ==> WireGuard ==> Local, fill in the client's private key and tunnel IP.
In Peer, fill in the server's public key and tunnel IP, as well as other configuration information.
In Peer, click the "ACCESS" button to connect.
When WireGuard connects to the server, there will be an increase in Data Received and Data Transmitted.
One of our customer produced a report before he chose the router in his project. This report provides a comprehensive comparison of two industrial-grade 4G routers: the Teltonika RUT241 (an internationally recognized compact industrial router) and the YHIOTT R2100 (a cost-effective domestic IoT router based on OpenWRT). The analysis focuses on core performance, network capabilities, industrial adaptability, management & security, and cost-effectiveness to guide decisions for industrial IoT deployments.
For more details, please refer to the link: Teltonika RUT241 vs. YHIOTT R2100
We have several models, its price depends on your specific needs, but their price is around 90 to 150 USD. Of course, there will be good discount for big order. You can talk with the sales manager.
The 4G industrial router is designed to build a stable high-speed and ultra-low latency wireless network - enable applications as diverse as remote surgery, autonomous driving, bus WiFi, AI-driven smart manufacturing and robotics. We have listed some typical applications on the web, you can learn more from the following page: Use Cases
We will open an account for you on the cloud management platform after you get the devices. It's for free. Some customers want to install the platform on their own server to reduce data flow. There are 2 solutions. First is to afford 15000USD to buy the platform, but once their order arrived to 10000 pcs, we will refund. Second is to order 2000pcs for one time, we will offer it for free.
YHioT guarantees its products a 12-month free warranty period. With additional agreement warranty period may be extended. For more detailed information, please contact your sales manager.
● Warranty does not cover defects or malfunctions caused by misuse, abuse or improper maintenance, failure to follow operating instructions or use with equipment with which it is not intended to be used.
● Products must have been purchased directly from YHioT.
● RMA procedure is applicable for supplementary product equipment (i.e. PSU, power cables, antennas). Please contact your sales manager in case of DOA accessories.
● Customers are only allowed to return products as a result of the product being defective, due to a YHioT order entry or manufacturing fault.
● Products must be returned to YHioT designated location within 30 days of receiving your Returns Merchandise Authorization (RMA) form.
● Devices sent to RMA without prior approval from YHioT by unilateral decision might not be processed and returned back to sender.
*For devices purchased from local distributors or resellers, please refer to the distributor or reseller’s point of contact for all information on return of YHioT products.
Customer will take full responsibility for proper packaging equipment to be returned to YHioT;
● Devices must be properly packed (preferably in original box).
● Include only device without any accessories.
● Please print received Return Merchandise Authorization (RMA) Request Form and send it back alongside with devices.
● RMA number AND QR code in the printed RMA Form should be clearly visible on the outside of the box.
Yes, we’re committed to long-term product reliability.
Firmware updates: Free updates will be released periodically till the End of Production date.
Technical support: Our customer service team remains available via phone/email for a period of five years after the End of Production date.
YHioT has been a dedicated specialist in the Industrial IoT communications sector for over 15 years. Over the past decade and a half, we have built a proven track record of empowering leading self-service vending operators globally with robust, cost-effective cellular routers and gateways.
Our clients choose and stay with us because of two core pillars:
1) Uncompromising Product Stability: Our industrial-grade hardware is built to withstand harsh outdoor environments, handling extreme temperature fluctuations (from industrial-low to high-heat thresholds) while maintaining consistent, stable 4G/5G data transmission.
2) Rapid & Agile Customer Response: We understand that deployment schedules and field issues require immediate attention. Our technical and customer support teams ensure minimal response latency to keep your operations running smoothly.
