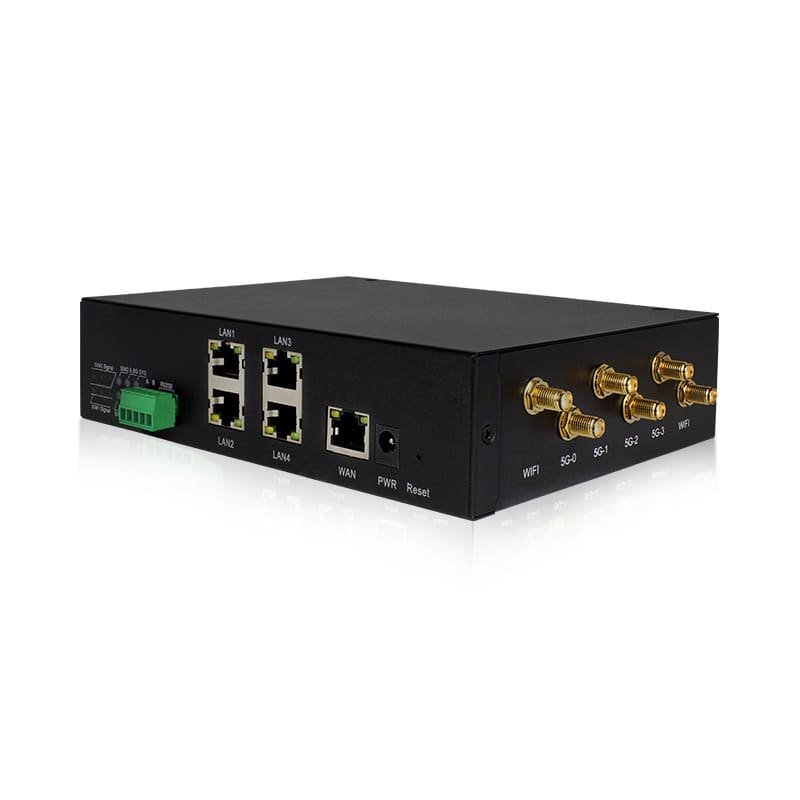

Meet R5100 Dual SIM 5G Industrial Router
R5100 5G industrial router is designed to build a stable, high-speed and ultra-low latency wireless network for industrial IoT – enable applications as diverse as remote surgery, autonomous driving, remote control, AI-driven smart manufacturing and robotics.
Comparing with other 5G router, it has the following advantages.
1. Support 5G SA and NSA mode, with ultra-high data rates andultra-low latency.
2. Integrated with single 5G modem and dual SIM card slots to support network backup functions.
3. IEEE 802.11ax WiFi6 standard, supports 1024QAM modulation, allows 100 simultaneous WiFi connections.
4. Dedicated hardware and software watchdog are designed to support system running reliable.
5. Rich VPN protocols like WireGuard, OpenVPN, GRE, IPsec, to offer connectivity, security and remote access to both local and remote clients.
6. External GPS module can be soldered to the router motherboard, can report the location information in NEMA-0183 formats to the user-defined TCP/UDP server for location and tracking.
7. Free service to monitor, configure and control all terminals via Cloud.
SPECIFICATIONS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile module | 5G SA Sub-6 – up to 2.4 Gbps downlink, 900 Mbps uplink 5G NSA Sub-6 – up to 3.4 Gbps downlink, 500 Mbps uplink LTE – up to 1.6 Gbps downlink, 200 Mbps uplink | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Status | Signal strength (RSSI), Attached network, IMSI, ICCID | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
APN | Auto APN, Customized APN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WIRELESS | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless mode | IEEE 802.11ax WiFi6, Access Point (AP) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WiFi security | WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SSID | SSID stealth mode and access control based on MAC address | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
WiFi users | Up to 100 simultaneous connections | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interface
Model
Standard Package Includes: * 1x R5100 5G Industrial Router * 1x 24W PSU * 1x Ethernet cable, 1m * 4x 5G magnet antenna,1.5m cable * 2x WiFi antenna Note: All accessories can be customized. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
FAQ
After you completed the WireGuard VPN server setting, you can login the router and configure the settings.
In VPN ==> WireGuard ==> Local, fill in the client's private key and tunnel IP.
In Peer, fill in the server's public key and tunnel IP, as well as other configuration information.
In Peer, click the "ACCESS" button to connect.
When WireGuard connects to the server, there will be an increase in Data Received and Data Transmitted.
One customer participated in a comparison test before launching his project. Hope it's helpful. His report compares three leading models: RUTX50, M357-5G, and Yhiott R5100, evaluating their key features, performance, and suitability for industrial use cases.
2. Key Specifications Comparison
Category | RUTX50 | M357-5G | Yhiott R5100 |
5G Modes | SA/NSA | SA/NSA | SA/NSA |
CPU | MT7621A | MT7981B | MT7981B |
5G Module Brand | Quectel | Quectel | |
Max Data Rates | Downlink: 3.4 Gbps (5G NSA); 2.4 Gbps (5G SA); Uplink: 900 Mbps (5G SA) | Downlink: 2.5 Gbps; Uplink: 400 Mbps (5G NSA) | Downlink: 3.4 Gbps (5G NSA); 2.4 Gbps (5G SA); Uplink: 900 Mbps (5G SA) |
LTE Support | LTE Cat 6 (up to 300 Mbps downlink) | LTE Cat 12 (up to 600 Mbps downlink) | LTE (up to 1.6 Gbps downlink; 200 Mbps uplink) |
5G Bands | Global coverage (n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n66, n71, n77, n78, n79) | EMEA/APAC focus (n1, n3, n7, n8, n28, n38, n41, n78) | Model-specific: R5000G (global), R5000E (EMEA/APAC/Brazil), R5000C (China) |
WiFi Standard | IEEE 802.11ac (WiFi 5) | IEEE 802.11ax (WiFi 6) | IEEE 802.11ax (WiFi 6) |
Max WiFi Connections | Up to 100 | Up to 128 | Up to 100 |
Interfaces | 5x Gigabit Ethernet (2x WAN/LAN configurable), 2x SIM slots, RS232/485 | 4x Gigabit Ethernet (1x WAN, 3x LAN), 1x SIM slot, RS232/485 | 1x WAN (Gigabit), 4x LAN (Gigabit), 2x SIM slot, 4x SMA (5G), 2x SMA (WiFi) |
VPN Protocols | WireGuard, OpenVPN, IPsec, GRE | IPsec, L2TP, PPTP, OpenVPN | WireGuard, OpenVPN, GRE, IPsec (up to 10 IPsec tunnels) |
Industrial Reliability | -40°C to 75°C operating temp; IP30; hardware watchdog | -40°C to 70°C operating temp; IP30; watchdog timer | -40°C to 75°C operating temp; IP30; dedicated hardware/software watchdog |
Power Requirements | 12-57 VDC; PoE (802.3af/at) support | 12-48 VDC; <15W max power consumption | 12-36 VDC or PoE 48V; <19W max power consumption |
Management | RMS (cloud); SNMP v3; FOTA | Cloud; SNMP v2/v3; FOTA | Free cloud monitoring; SNMP v1/v2/v3 |
Additional Features | GNSS (GPS/GLONASS); dual SIM failover | GPS support; traffic management | External GPS module (NMEA-0183); |
Firmware updates | Free updates will be released periodically till the End of Production date. | Free updates will be released periodically till the End of Production date. | |
Technical support | 5 years after the End of Production date | 5 years after the End of Production date | |
Warranty | 1 year free | 1 year free | 1 year free |
Price | 560~800 USD | 480~600 USD | 350~520 USD |
3. Detailed Analysis
3.1 Network Performance
- Yhiott R5100 leads in 5G NSA downlink speed (3.4 Gbps) and 5G SA uplink speed (900 Mbps), dual SIM failover, making it ideal for bandwidth-intensive applications like remote surgery or AI-driven manufacturing.
- M357-5G offers strong LTE performance (Cat 12, 600 Mbps downlink), suitable for regions with mixed 5G/LTE coverage.
- RUTX50 balances 5G and LTE capabilities, with reliable dual SIM failover for mission-critical networks.
3.2 Wireless & Connectivity
- All three support 5G SA/NSA, but Yhiott R5100 and M357-5G feature WiFi 6 (802.11ax) for faster wireless speeds and more concurrent connections (up to 100 and 128, respectively), outperforming ’s WiFi 5.
- RUTX50 offers flexible Ethernet ports (2x configurable WAN/LAN), useful for complex network setups, while Yhiott R5100 provides 4 dedicated LAN ports for stable device connections.
3.3 Security & Reliability
- Yhiott R5100 stands out with rich VPN options (including WireGuard) and 10 IPsec tunnels, enhancing secure remote access. Its hardware/software watchdog ensures uninterrupted operation in harsh environments.
- RUTX50 and M357-5G offer robust security (firewalls, MAC filtering) but with fewer VPN protocols compared to Yhiott.
- All meet industrial temperature standards (-40°C to 75°C), with IP30 protection against dust, suitable for factory floors or outdoor deployments.
3.4 Management & Power
- Yhiott R5100 and RUTX50 provide free cloud management (Yhiott Cloud, RMS), simplifying remote monitoring. requires a proprietary cloud platform.
- M357-5G has lower power consumption (<15W), beneficial for battery-powered setups, while Yhiott R5100 supports PoE 48V for flexible power sourcing.
4. Conclusion
- Yhiott R5100 is the highest cost performance, WiFi 6-dependent applications (e.g., smart manufacturing, autonomous driving) with its superior 5G speeds and security features.
- RUTX50 is frequently cited as a top contender for its robust performance, security features, and rugged design.
- M357-5G suits low-power, LTE-reliant environments (e.g., remote sensors) with its efficient power use and strong LTE Cat 12 performance.
Note: Specifications for RUTX50 and M357-5G are based on public data as of 2024. For the latest details, refer to manufacturers’ official documentation.
We have several models, its price depends on your specific needs, but their price is around 290 to 520 USD. Of course, there will be good discount for big order. You can talk with the sales manager.
R5200 Dual 5G modules and Dual SIM cards, 5 RJ45 ports
R5100 Single 5G module and Dual SIM cards, 5 RJ45 ports
R5000 Single 5G module and single SIM card, 5 RJ45 ports
R500 Single 5G module and single SIM card, 2 RJ45 ports
RW5000 Outdoor 5G Router, IP67 grade
The 5G industrial router is designed to build a stable high-speed and ultra-low latency wireless network - enable applications as diverse as remote surgery, autonomous driving, bus WiFi, AI-driven smart manufacturing and robotics. We have listed some typical applications on the web, you can learn more from the following page: https://yhiott.com/blog/
YHioT guarantees its products a 12-month free warranty period. With additional agreement warranty period may be extended. For more detailed information, please contact your sales manager.
● Warranty does not cover defects or malfunctions caused by misuse, abuse or improper maintenance, failure to follow operating instructions or use with equipment with which it is not intended to be used.
● Products must have been purchased directly from YHioT.
● RMA procedure is applicable for supplementary product equipment (i.e. PSU, power cables, antennas). Please contact your sales manager in case of DOA accessories.
● Customers are only allowed to return products as a result of the product being defective, due to a YHioT order entry or manufacturing fault.
● Products must be returned to YHioT designated location within 30 days of receiving your Returns Merchandise Authorization (RMA) form.
● Devices sent to RMA without prior approval from YHioT by unilateral decision might not be processed and returned back to sender.
*For devices purchased from local distributors or resellers, please refer to the distributor or reseller’s point of contact for all information on return of YHioT products.
Customer will take full responsibility for proper packaging equipment to be returned to YHioT;
● Devices must be properly packed (preferably in original box).
● Include only device without any accessories.
● Please print received Return Merchandise Authorization (RMA) Request Form and send it back alongside with devices.
● RMA number AND QR code in the printed RMA Form should be clearly visible on the outside of the box.
Yes, we’re committed to long-term product reliability.
Firmware updates: Free updates will be released periodically till the End of Production date.
Technical support: Our customer service team remains available via phone/email for a period of five years after the End of Production date.
