Interface WAN | 1 x WAN port, 100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX | LAN | 4 x LAN port, 100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX | SIM | 2 Standard SIM card slot,1.8 V/3 V, external SIM holder | Antenna | 8 x SMA for 5G, 2 x SMA for WiFi antenna connectors | LED | PWR, WAN, LAN, 2.4GHz, 5.8GHz, Data, Cellular, Signal | Reset | Reboot/Factory reset button | NETWORK | Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, RIPng, OSPF6) | Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, PPP, PPPoE, UPnP, DHCP, Telnet client, SNMP | Connection monitoring | Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection | Firewall | Port forwarding | DHCP | Static and dynamic IP allocation | QoS | Traffic priority queuing by source/destination, service, protocol or port | DDNS | Supported >25 service providers, others can be configured manually | SECURITY | WEB filter | Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only | Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter | VPN | IPsec | IKEv1, IKEv2, supports up to 10 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) | WireGuard | Curve25519, ChaCha20, Poly1305, BLAKE2, SipHash24 | Serial transmission | TCP/UDP server | Parameters | Port, Baud rate, Parity, Data bits, Stop bits, Flow control | TCP/UDP client | Parameters | Port, Baud rate, Parity, Data bits, Stop bits, Flow control, Heartbeat | Data center | Supported 4 server run simultaneously | MONITORING & MANAGEMENT | WEB UI | HTTP, status, configuration, FW update,troubleshoot, event log, system log, kernel log | FOTA | Firmware update from sever, automatic notification | SNMP | SNMP (v1, v2, v3) | IoT PLATFORMS | Cloud of Things | Allows monitoring Network info, Availability | Configure | Configure parameters, Update firmware | SYSTEM CHARACTERISTICS | CPU | MT7981BA+MT7976CN+MT7531AE | RAM | 256MB DDR3L | FLASH storage | 32MB, SPI Flash | FIRMWARE / CONFIGURATION | WEB UI | Update FW from file, check FW on cloud, configuration backup and restore | FOTA | Update FW/configuration from cloud platform | RMS | Update FW/configuration for multiple devices | Keep settings | Update FW without losing current configuration | POWER | Connector | 12-36 VDC, 6-pin with 3.5 mm terminal block | Input voltage range | POE 48V, or 12 – 36 VDC, reverse polarity protection, surge protection | Power consumption | < 19 W Max | PHYSICAL SPECIFICATION | Casing material | Metal housing | Dimensions (W x H x D) | 150*114*40mm | Weight | 460g | OPERATING ENVIRONMENT | Operating temperature | -40 °C to 75 °C | Operating humidity | 10% to 90% non-condensing | Ingress Protection Rating | IP30 | REGULATORY & TYPE APPROVALS | Regulatory | CE, FCC, CCC | EMI IMMUNITY | Standards | Draft EN 301 489-1 V2.2.0, Draft EN 301 489-17 V3.2.0, Draft EN 301 489-52 V1.1.0
FCC 47 CFR Part 15B (2017), ANSI C63.4 (2014) | ESD | EN61000-4-2:2009 | RS | EN 61000-4-3:2006 + A1:2008 + A2:2010 | EFT | EN 61000-4-4:2012 | Surge immunity (AC Power Line) | EN 61000-4-5:2006 | Surge immunity (Ethernet ports) | EN 61000-4-5:2014, clause 7.1 of ITU-T K21 | CS | EN 61000-4-6:2009 | DIP | EN 61000-4-11:2004 | RF | Standards | EN 300 328 V2.1.1, EN 301 511 V12.5.1, EN 301 908-1 V11.1.1, EN 301 908-2 V11.1.1, EN 301 908-13 V11.1.1
FCC 47 CFR Part 15C (2017), FCC 47 CFR Part 2 (2017), FCC 47 CFR Part 22H (2017), FCC 47 CFR Part 24E (2017), FCC 47 CFR Part 27C (2017)
RSS-Gen Issue 4 (2014), RSS-247 Issue 2 (2017), RSS-132 Issue 3 (2013), RSS-133 Issue 6 (2013), RSS-139 Issue 3, RSS-130 Issue 1
AS/CA S042.1:2018, AS/ACIF S042.3:2005, AS/CA S042.4:2018, AS/NZS 4268:2017 |
Model Model | Region | 5G Band | R5200G | Global | 5G NR:n1/n2/n3/n5/n7/n8/n12/n20/n25/ n28/n38/n40/n41/n48/n66/n71/ n77/n78/n79 LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B12(B17)/ B13/B14/B18/B19/B20/B25/B26/ B28/B29/B30/B32/B66/B71 LTE-TDD:B34/B38/B39/B40/B41/B42/B43/B48 | R5200E | EMEA/ APAC(exclude Japan) / Brazil | 5G NR: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78; LTE-FDD: B1/3/5/7/8/20/28/32/71; LTE-TDD: B38/40/41/42/43; | R5200C | China | 5G NR NSA:n41/n78/n79 5G NR SA:n1/n28/n41/n77/n78/n79 LTE-FDD:B1/B2/B3/B5/B7/B8/ B20/B28 LTE-TDD:B34/B38/B39/B40/B41 |

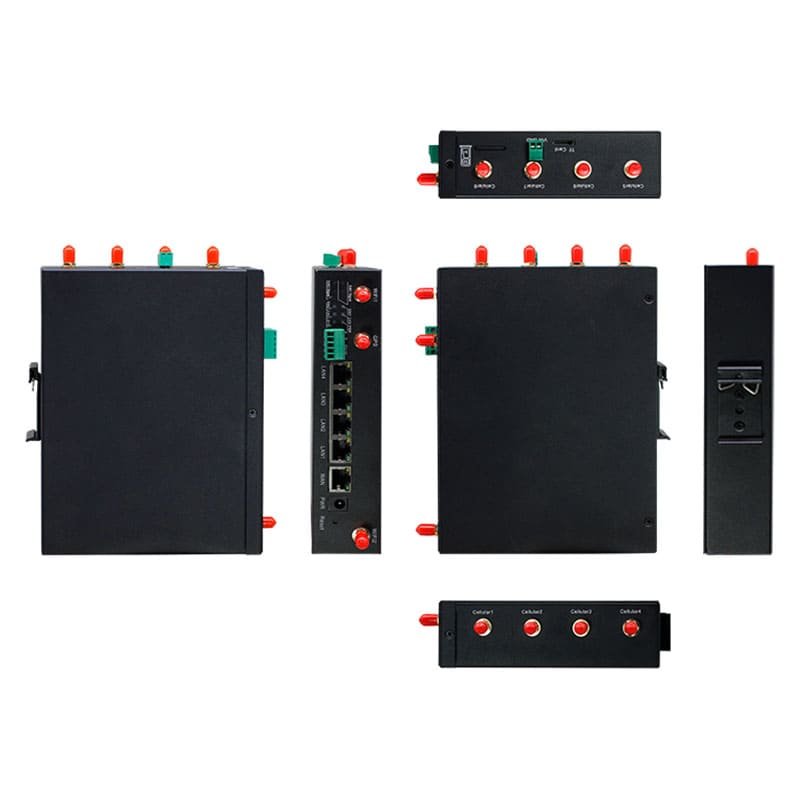

Standard Package Includes: * 1x R5200 5G Industrial Router * 1x 24W PSU * 1x Ethernet cable, 1m * 8x 5G magnet antenna,1.5m cable * 2x WiFi antenna Note: All accessories can be customized. |
